Bakery Trays Loader & Unloader Systems and Depanner Machine: Automating Bakery Tray Handling
In modern industrial bakeries, automation is no longer limited to dough preparation, forming, proofing, and baking. Tray handling and product depanning are also important parts of an efficient automated bakery production process.
Manual loading and unloading of baking trays can require significant labor, especially in high-volume bakeries where large numbers of trays must be transferred between racks and conveying systems every day. Repetitive manual handling can also affect production efficiency and create inconsistencies in tray positioning.
To address these challenges, Andrew Mafu Machineryprovides automated bakery tray handling and depanning solutions, including the ADMF Rack Loader & Unloader Systems and ADMF Bakery Depanner Machine.
These machines are designed to reduce manual operations, improve production efficiency, and create a smoother connection between baking, conveying, cooling, and downstream bakery processes.
What Are Bakery Trays Loader & Unloader Systems?
The Bakery Trays Loader & Unloader Systems are designed to automatically load or unload baking pans from bakery racks or trolleys and transfer them to a conveying line.
In traditional bakery production, operators may need to manually remove baking trays from a rack and place them onto a conveyor. When production volumes increase, this process can become labor-intensive and time-consuming.
The ADMF Rack Loader & Unloader Systems can replace this repetitive manual operation.
The machine automatically handles baking trays and arranges them onto the conveying line, helping bakeries:
（1）Reduce manual labor
（2）Improve tray handling efficiency
（3）Maintain accurate tray positioning
（4）Improve production continuity
（5）Reduce repetitive operator work
（6）Integrate tray handling with automated bakery lines
This makes the system particularly suitable for industrial bakeries where large numbers of baking trays need to be transferred continuously.

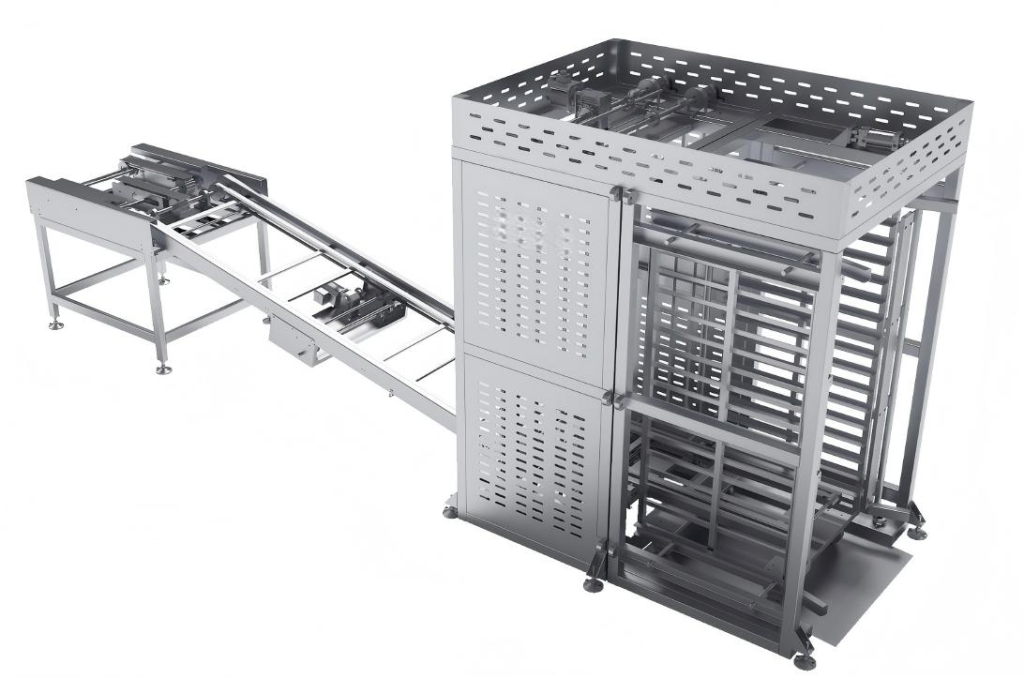

ADMF Rack Loader & Unloader Systems
The ADMF-SXPJ Rack Loader & Unloader Systems is designed around accurate automatic tray movement.
One of its key characteristics is the use of full servo control. The baking trays can therefore be moved accurately according to the programmed operating sequence.
The system has an upper and lower plate operating speed of approximately 90 seconds per trolley, while the specific production configuration can be customized according to tray specifications and customer requirements.
The equipment supports standard baking tray dimensions of:
（1）400 × 600 mm
（2）600 × 600 mm
Other tray specifications can also be customized.
Technical Specifications of ADMF Rack Loader & Unloader Systems
The main technical parameters are shown below:
Technical Parameter
Specification
Model
ADMF-SXPJ
Speed
90 s/car
External Dimension
5700 × 1350 × 2260 mm
Power
3 kW
Control System
Full Servo Control
Tray Size
400 × 600 mm / 600 × 600 mm
Tray Configuration
Two beats per session
Operation Interface
Man-machine interface
Parameter Management
Parameters can be adjusted, saved, and read
Customization
Other tray specifications available
The machine’s dimensions drawing can also be provided separately during the engineering and project design stage when required.
Full Servo Control for Accurate Tray Movement
One of the important features of the ADMF Rack Loader & Unloader Systems is its full servo-controlled operation.
Servo control allows the movement of the baking trays to be managed precisely according to the programmed production sequence.
This is particularly important when the loader or unloader is integrated with a larger automated bakery production line.
Accurate tray movement can help reduce problems caused by:
（1）Incorrect tray positioning
（2）Unstable tray transfer
（3）Misalignment with conveyors
（4）Manual handling errors
（5）Irregular production flow
The machine can therefore serve as an important connection point between rack storage and automated conveying systems.
Man-Machine Interface and Adjustable Parameters
The ADMF Rack Loader & Unloader Systems is equipped with a man-machine interface, allowing operators to manage machine parameters conveniently.
Parameters can be:
（1）Adjusted
（2）Saved
（3）Read
（4）Reconfigured according to production requirements
This provides greater flexibility when the bakery needs to handle different operating conditions.
For bakeries using different tray specifications or production schedules, adjustable parameters can help simplify machine operation and reduce unnecessary manual intervention.
Why Automate Bakery Tray Loading and Unloading?
Tray handling is sometimes overlooked when designing an automated bakery production line.
However, the loading and unloading process can become a bottleneck when upstream and downstream equipment operates automatically while tray handling remains manual.
For example, a bakery production line may include:
The machine replaces repetitive manual tray loading and unloading operations.
2. Improved Production Efficiency
Automatic tray transfer helps maintain a stable production rhythm.
3. Accurate Tray Positioning
Servo-controlled movement helps improve positioning accuracy.
4. Reduced Manual Handling
Operators can focus on monitoring and production management rather than repetitive tray movement.
5. Easy Integration
The system can be designed to connect with conveying systems and other bakery equipment.

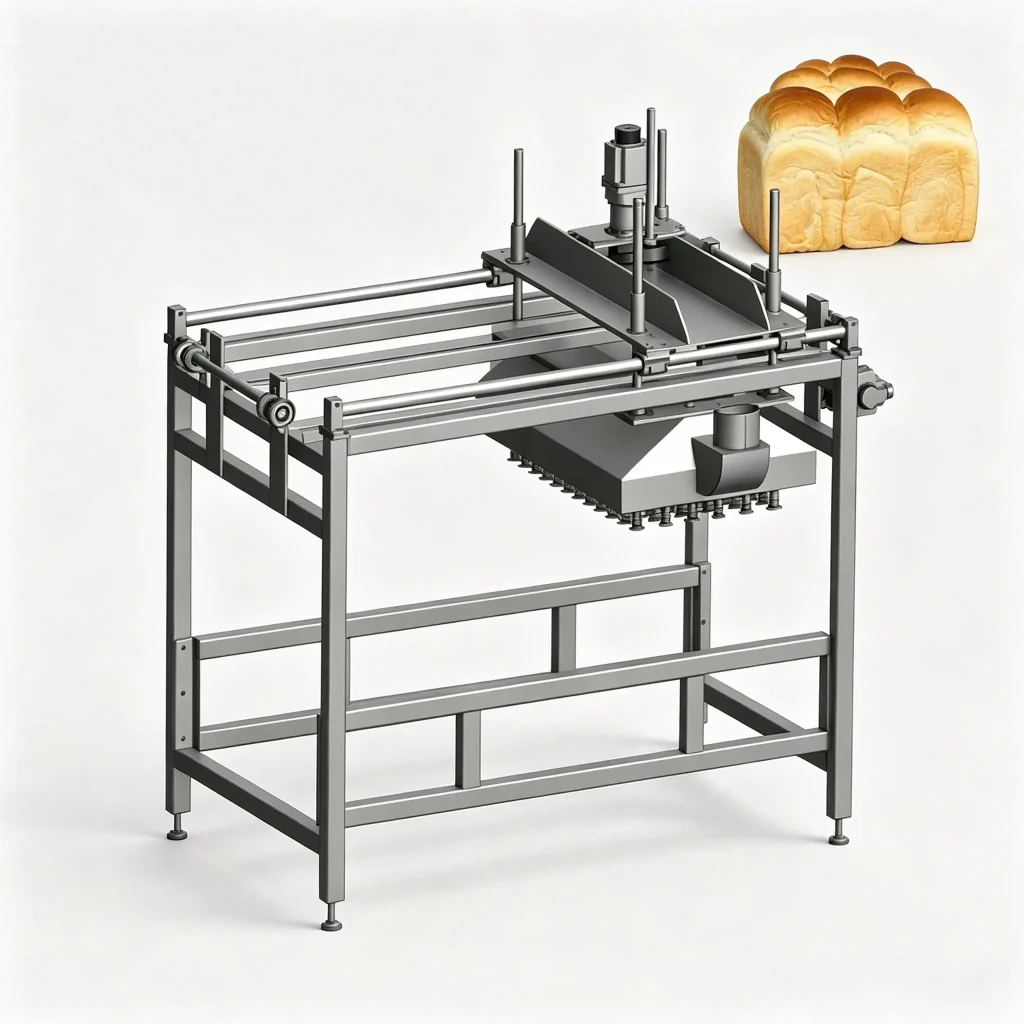

Bakery Depanner Machine: Automatic Product Removal from Baking Trays
After baking, products need to be removed from baking trays before they enter cooling, slicing, packaging, or other downstream processes.
This process is known as depanning.
For high-volume bakeries, manual depanning can be labor-intensive and may create product handling inconsistencies.
The ADMF Bakery Depanner Machine is designed to automatically remove baked products from trays and transfer them to the next stage of production.
The machine is suitable for applications including:
（1）Cup cakes
（2）Bread
（3）Stamped toast
The system uses a combination of frame structures, translational driving mechanisms, elevator mechanisms, and an adsorption mechanism with a suction nozzle plate.
How Does the Bakery Depanner Machine Work?
The ADMF Bakery Depanner Machine integrates several mechanical mechanisms to achieve automatic product removal.
Its main components include:
Frame
Provides the structural support for the complete machine and ensures stable operation.
Translational Driving Mechanism
The translational mechanism moves the product handling system horizontally and includes a motor-driven conveyor.
Elevator Drive Mechanism
The elevator mechanism controls the vertical movement required during the depanning process.
Adsorption Mechanism
The adsorption system includes a suction nozzle plate designed to pick up bakery products from the baking tray.
These mechanisms work together to automatically remove products from trays and transfer them to the downstream conveying system.
Technical Specifications of ADMF Bakery Depanner Machine
Technical Parameter
Specification
Name
Bakery Depanner Machine
Model
ADMF-XPTMJ
Rated Voltage
220 V / 50 Hz
Power
3.7 kW
Dimensions
1744 × 1020 × 1622 mm
Weight
600 kg
Capacity
4 times/minute
Main Mechanism
Translational + Elevator + Adsorption
Adsorption System
Suction Nozzle Plate
Application
Cup Cake, Bread, Stamped Toast
The final configuration and product handling parameters can be evaluated according to the customer’s product characteristics and production requirements.
Bakery Depanner for Different Products
Different bakery products have different shapes, weights, surface characteristics, and structural strengths.
Therefore, depanning equipment needs to be selected according to the actual product.
The ADMF Bakery Depanner Machine is designed for applications including:
Cup Cakes
Cup cakes require careful handling because their shape and surface can be sensitive after baking.
Bread
The machine can automatically remove baked bread products from trays and transfer them to downstream conveying systems.
Stamped Toast
For stamped or moulded toast products, automated depanning can help maintain a consistent production flow after baking.
For new projects, Andrew Mafu Machinery can evaluate product dimensions, tray configuration, product weight, and production requirements before determining the appropriate machine configuration.
Loader, Unloader and Depanner: Building a More Efficient Bakery Line
A modern industrial bakery should not only focus on individual machine performance. The connection between different production stages is equally important.
A typical automated tray-based bakery production process can be structured as:
Dough Preparation
↓
Dough Dividing & Forming
↓
Automatic Tray Arranging
↓
Proofing
↓
Baking
↓
Rack / Tray Handling
↓
Automatic Depanning
↓
Cooling
↓
Slicing / Packaging
The loader and unloader can handle trays before and after baking, while the depanner removes finished products from trays.
Together, these technologies can reduce manual intervention and improve the overall automation level of a bakery production line.
Technical Comparison
Function
Manual Operation
Automated Solution
Tray Loading
Operator required
Automatic
Tray Unloading
Operator required
Automatic
Tray Positioning
Manual
Servo-controlled
Product Depanning
Manual
Automatic
Labor Requirement
Higher
Reduced
Production Flow
Dependent on operators
More consistent
Tray Handling Accuracy
Operator dependent
Controlled automatically
Integration
Limited
Suitable for automated lines
Production Management
Manual
Parameter-based control
The actual labor savings and production efficiency improvement will depend on the bakery’s production volume, tray configuration, layout, and existing equipment.
Designed for Industrial Bakery Automation
Andrew Mafu Machinery understands that every bakery has different requirements.
For this reason, bakery automation equipment should be designed around the customer’s actual production process.
Before selecting a loader, unloader, or depanner, important information may include:
(1)Tray dimensions
(2)Rack dimensions
(3)Number of trays per trolley
(4)Product dimensions
(5)Product weight
(6)Product type
(7)Baking process
(8)Required capacity
(9)Conveyor height
(10)Factory layout
(11)Downstream equipment
This information allows engineers to evaluate the equipment configuration and ensure better compatibility with the complete production line.
Andrew Mafu Machinery: Bakery Automation Solutions
As an industrial bakery equipment manufacturer, Andrew Mafu Machinery provides equipment and production solutions for different bakery applications.
Our product range includes:
(1)Bread production lines
(2)High moisture bread production lines
(3)Croissant production lines
(4)Dough processing equipment
(5)Filling and depositing machines
(6)Bakery tray loader and unloader systems
(7)Bakery depanner machines
(8)Tray handling equipment
(9)Bakery conveying systems
(10)Other customized bakery automation solutions
The goal is not simply to supply individual machines, but to help customers develop efficient and reliable bakery production systems.
Conclusion
As bakeries move toward higher production capacity and greater automation, Bakery Trays Loader & Unloader Systems and Depanner Machine are becoming increasingly valuable components of automated bakery production.
The ADMF-SXPJ Rack Loader & Unloader Systems can automatically handle baking trays, replace repetitive manual loading and unloading operations, and provide accurate servo-controlled tray movement.
Meanwhile, the ADMF-XPTMJ Bakery Depanner Machine provides automatic product removal for applications including cup cakes, bread, and stamped toast.
By integrating tray handling and depanning into the broader production process, bakeries can reduce manual operations, improve production continuity, and create a more efficient automated workflow.
With customized engineering and a focus on practical bakery production requirements, Andrew Mafu Machinery continues to provide solutions designed to help industrial bakeries improve automation, productivity, and production consistency.
For bakery manufacturers planning a new production line or upgrading an existing facility, Andrew Mafu Machinery can provide customized tray handling, depanning, and complete bakery automation solutions according to your product and production requirements.
Frequently Asked Questions
1. What is a Bakery Trays Loader & Unloader System?
It is an automated system designed to load and unload baking trays from bakery racks or trolleys and transfer them to a conveying line, reducing manual tray handling.
2. What tray sizes can the ADMF Rack Loader & Unloader handle?
The standard system is suitable for 400 × 600 mm and 600 × 600 mm baking trays. Other specifications can be customized.
3. How fast is the ADMF Rack Loader & Unloader?
The specified upper and lower plate speed is 90 seconds per trolley.
4. Is the Rack Loader & Unloader servo controlled?
Yes. The complete machine uses full servo control to achieve accurate baking tray movement.
5. What products can the ADMF Depanner handle?
The Bakery Depanner Machine is suitable for cup cakes, bread, and stamped toast applications.
6. What is the capacity of the ADMF-XPTMJ Depanner?
The specified capacity is 4 times per minute.
7. Can the tray loader and depanner be integrated into an existing bakery line?
Yes, integration can be evaluated according to conveyor height, tray dimensions, product characteristics, production capacity, and the existing factory layout.
8. Can Andrew Mafu Machinery customize bakery automation equipment?
Yes. Andrew Mafu Machinery can customize equipment and production-line configurations according to product specifications, tray dimensions, production capacity, and factory conditions.
